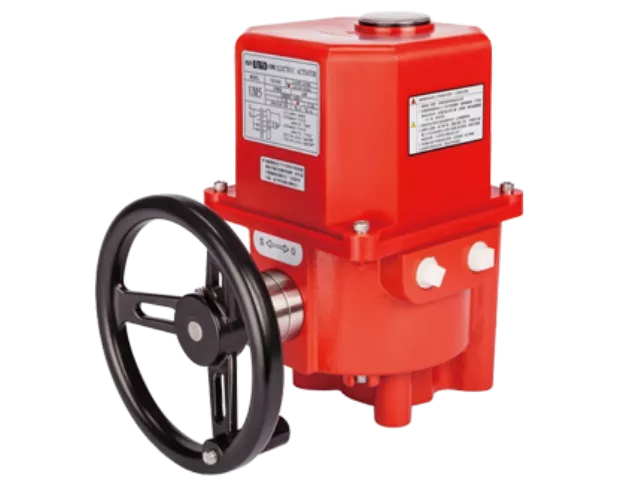

90-Degree Rotating Electric Actuator (UM-5~6)
Description：
Application Range
Direct-drive series installed on ISO 5211 platform specification valves (valves)
Direct-drive series installed on ISO 5211 platform specification valves (valves)
Professional certification
ISO 9001、CE、CSA、UL429、IP67
-
-
Direct-drive electric motor actuators should be installed on ISO 5211 high-platform valves or butterfly valves
-
UM/R series electric motor actuators are low-power, high-torque devices
-
The overall casing has sealed seams with waterproof seals, certified to IP67, suitable for various outdoor environments
-
Smooth opening speed effectively prevents water hammer phenomenon, thus increasing the lifespan of pipe fittings
-
UM/R series electric motor actuators can be inspected from the top window or side to check valve position, or through wiring control boxes with indicator lights displaying position
-
Waterproof rating IP67
-
Casing parts are made of materials such as "NYLON" with characteristics of high temperature resistance, acid and alkali resistance, and impact resistance
-
Aluminum alloy casing is available as an optional purchase
Optional Accessories-
Temperature controller
-
Non-electrical micro switch (up to 2 sets)
-
Heater (including overheat protector)
-
Proportional controller
-
On-site control
-
Relay
-
Potentiometer (VR Set)
Precautions-
When operating manually or performing maintenance, please turn off the power first to prevent component damage and potential hazards. When using manual operation, it is recommended to use a spanner (8mm opening) with a length not exceeding 10 cm. Turn gently; if it feels tight, first check if the valve is locked. Do not use excessive force to avoid damaging internal components*Do not use other rods to rotate the handwheel, as this may damage the electric motor actuator and valve
-
After completing wiring work, check if the waterproof seal (O-ring) is securely in place, then tighten the casing and ensure that the screws of the cable fixing head are securely fastened to prevent dust or rainwater from entering. (It is recommended that customer wiring should be a minimum of 6Φ.)
-
If multiple electric valves need to be synchronized to open or close, please install relays, one for each valve. Do not connect them in series or parallel
-
When using manual mode, ensure that the window pointer does not exceed the scale range to prevent damage to internal components. (For proportional control: variable resistor (VR) damage)
-
-
Weight10 kgManual deviceHandwheelFlange hole distance（ISO 5211）F10/F12
左右滑動看表格Model Motor Power 90° Rotation Switch Time (sec) Torque Value(±5%)
kgf-cm
AC110V(60Hz)Torque Value(±5%)
kgf-cm
AC220V(60Hz)No-Load Consumption Current AC
100V~120VAC
200V~240VUM-5 40W 30 4266 4873 0.9A 0.6A UM-6 60W 30 5689 6081 1.0A 0.7A 左右滑動看表格Model Motor Power 90° Rotation Switch Time (sec) Torque Value(±5%)
kgf-cm
AC110V(60Hz)No-Load Consumption Current DC24V UM-6 65W 30 6000 0.8A Rated voltage(special voltages available on request)-
AC 100V ~ 120V
-
AC 200V ~ 240V
-
DC 24V
-
-
Product Features Introduction
-
Direct-drive electric motor actuators should be installed on ISO 5211 high-platform valves or butterfly valves
-
UM/R series electric motor actuators are low-power, high-torque devices
-
The overall casing has sealed seams with waterproof seals, certified to IP67, suitable for various outdoor environments
-
Smooth opening speed effectively prevents water hammer phenomenon, thus increasing the lifespan of pipe fittings
-
UM/R series electric motor actuators can be inspected from the top window or side to check valve position, or through wiring control boxes with indicator lights displaying position
-
Waterproof rating IP67
-
Casing parts are made of materials such as "NYLON" with characteristics of high temperature resistance, acid and alkali resistance, and impact resistance
-
Aluminum alloy casing is available as an optional purchase
Optional Accessories-
Temperature controller
-
Non-electrical micro switch (up to 2 sets)
-
Heater (including overheat protector)
-
Proportional controller
-
On-site control
-
Relay
-
Potentiometer (VR Set)
Precautions-
When operating manually or performing maintenance, please turn off the power first to prevent component damage and potential hazards. When using manual operation, it is recommended to use a spanner (8mm opening) with a length not exceeding 10 cm. Turn gently; if it feels tight, first check if the valve is locked. Do not use excessive force to avoid damaging internal components*Do not use other rods to rotate the handwheel, as this may damage the electric motor actuator and valve
-
After completing wiring work, check if the waterproof seal (O-ring) is securely in place, then tighten the casing and ensure that the screws of the cable fixing head are securely fastened to prevent dust or rainwater from entering. (It is recommended that customer wiring should be a minimum of 6Φ.)
-
If multiple electric valves need to be synchronized to open or close, please install relays, one for each valve. Do not connect them in series or parallel
-
When using manual mode, ensure that the window pointer does not exceed the scale range to prevent damage to internal components. (For proportional control: variable resistor (VR) damage)
-
-
Specification SheetWeight10 kgManual deviceHandwheelFlange hole distance（ISO 5211）F10/F12 左右滑動看表格
Model Motor Power 90° Rotation Switch Time (sec) Torque Value(±5%)
kgf-cm
AC110V(60Hz)Torque Value(±5%)
kgf-cm
AC220V(60Hz)No-Load Consumption Current AC
100V~120VAC
200V~240VUM-5 40W 30 4266 4873 0.9A 0.6A UM-6 60W 30 5689 6081 1.0A 0.7A 左右滑動看表格Model Motor Power 90° Rotation Switch Time (sec) Torque Value(±5%)
kgf-cm
AC110V(60Hz)No-Load Consumption Current DC24V UM-6 65W 30 6000 0.8A Rated voltage(special voltages available on request)-
AC 100V ~ 120V
-
AC 200V ~ 240V
-
DC 24V
-
