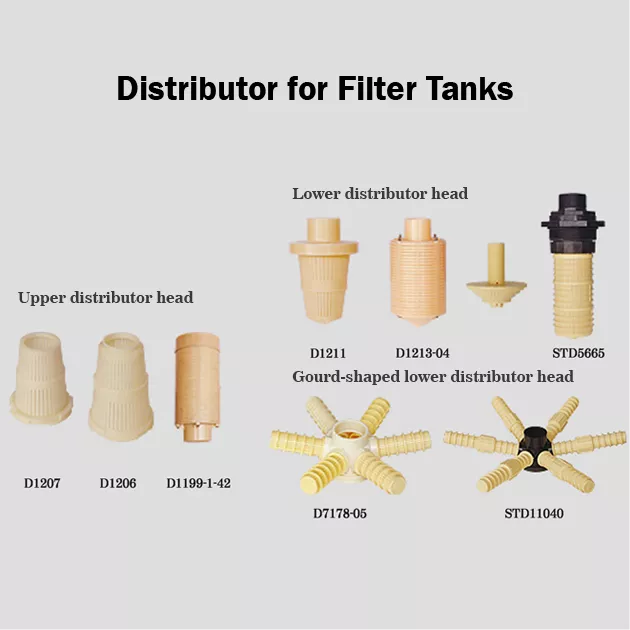

Distributor
-
The distributor is placed inside the filter material barrel and serves the following purposes：
-
Prevents filter material from being flushed out during backwashing
-
Increases contact area and efficiency during regeneration/backwashing
-
Choosing the correct distributor can optimize the performance of the filter media and save costs
-
Select different top and bottom distributors for filter media tanks of varying diameters to maintain the efficiency of the filter media tank
-
-
Material: PE plastic (Polyethylene).Product Color: Colors may vary slightly between batches as per manufacturer's random shipment.
左右滑動看表格Water Collector Specifications Model Product Name Applicable
Pipe DiameterOpening Applicable Barrel
Pipe DiameterD1207 Upper Water Collector Head 3/4" Top-opening Type 6"~13" D1206 Upper Water Collector Head 3/4" Top-opening Type 6"~13" D1211 Lower Water Collector Head 3/4" Top-opening Type 6"~13" D1213-04 Lower Water Collector Head 3/4" Top-opening Type 6"~13" D7178-04 Claw-type Lower Water Collector Head 3/4" Top-opening Type 13"~16" D7179-05 Claw-type Lower Water Collector Head 1 1/4" Top-opening Type 18"~24" D1199-01-42 Upper Water Collector Head 1 1/2" Top-opening Type 14" ~36" STD5665 Lower Water Collector Head 1 1/2" Top-opening Type 13" ~20" STD5666 Claw-type Lower Water Collector Head 1 1/2" Top-opening Type 18" ~21" STD5668 Lower Water Collector Head 2" 4"Top and Bottom-opening Type 13" ~16" STD5670 Claw-type Lower Water Collector Head 2" 4"Top and Bottom-opening Type 24" STD5671 Upper and Lower Water Collector Heads 2" 4"Top and Bottom-opening Type 14" ~36" STD5688 Claw-type Lower Water Collector Head 1 1/2" 上開型 13" ~16" STD11039 Lower Water Collector Head 2" 4"Top and Bottom-opening Type 30" STD11040 Claw-type Lower Water Collector Head 2" 4"Top and Bottom-opening Type 36"
-
Product Features IntroductionThe distributor is placed inside the filter material barrel and serves the following purposes：
-
Prevents filter material from being flushed out during backwashing
-
Increases contact area and efficiency during regeneration/backwashing
-
Choosing the correct distributor can optimize the performance of the filter media and save costs
-
Select different top and bottom distributors for filter media tanks of varying diameters to maintain the efficiency of the filter media tank
-
-
Specification Sheet
Material: PE plastic (Polyethylene).Product Color: Colors may vary slightly between batches as per manufacturer's random shipment. 左右滑動看表格Water Collector Specifications Model Product Name Applicable
Pipe DiameterOpening Applicable Barrel
Pipe DiameterD1207 Upper Water Collector Head 3/4" Top-opening Type 6"~13" D1206 Upper Water Collector Head 3/4" Top-opening Type 6"~13" D1211 Lower Water Collector Head 3/4" Top-opening Type 6"~13" D1213-04 Lower Water Collector Head 3/4" Top-opening Type 6"~13" D7178-04 Claw-type Lower Water Collector Head 3/4" Top-opening Type 13"~16" D7179-05 Claw-type Lower Water Collector Head 1 1/4" Top-opening Type 18"~24" D1199-01-42 Upper Water Collector Head 1 1/2" Top-opening Type 14" ~36" STD5665 Lower Water Collector Head 1 1/2" Top-opening Type 13" ~20" STD5666 Claw-type Lower Water Collector Head 1 1/2" Top-opening Type 18" ~21" STD5668 Lower Water Collector Head 2" 4"Top and Bottom-opening Type 13" ~16" STD5670 Claw-type Lower Water Collector Head 2" 4"Top and Bottom-opening Type 24" STD5671 Upper and Lower Water Collector Heads 2" 4"Top and Bottom-opening Type 14" ~36" STD5688 Claw-type Lower Water Collector Head 1 1/2" 上開型 13" ~16" STD11039 Lower Water Collector Head 2" 4"Top and Bottom-opening Type 30" STD11040 Claw-type Lower Water Collector Head 2" 4"Top and Bottom-opening Type 36"
