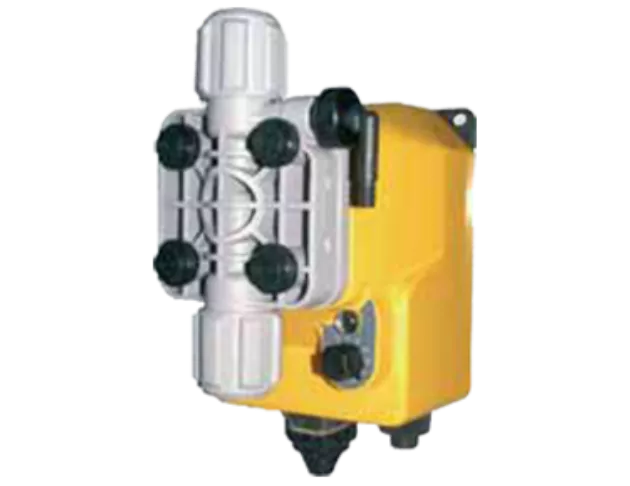

DM Dosing Machine
Description：
General cooling water, Swimming pools, and wastewater treatment
-
The dosing of chemicals adopts an adjustable flow rate method, with a dosing delivery pressure of 80 psi or higher, including a liquid level protection control in the chemical storage tank.
Its primary purpose is to use sodium hypochlorite (NaOCl) to treat and control microbial growth, serving as a disinfectant for tap water and pool water, as well as a bleach.
It complies with the regulations of the United States Food and Drug Administration (FDA 21CFR 173.310) and can be used for equipment sterilization in food plants.Product Features
- Fire and acid resistant polypropylene enclosure
- 0 - 100% manual flow control valve
- Manual air vent, powered by 90 - 265V AC (24V available upon request)
- Quick-connect ports for power supply and liquid level detection
- Operational status LED indicator
- IP 65 protection rating
- Pump head customization available according to customer requirements
Usage Method
- Can be used with a metering pump for precise dosing, or calculated according to concentration, typically added once or twice per week
- Optimal dosing concentration: 200 ppm
- Chemical dosing outlet pressure: 5-7 bar
-
Installation steps
-
ModelFlow ratePressureCubic centimeters per strokeStrokes per minuteConnection diameterPower consumptionWeightOL BP2 l/h7 bar0,331804/6 mm15 watt1,5 kg
Disinfection Dosing Unit
Includes a dosing machine and chemical storage tank (PE tank, 60-200L capacity)
-
Product Features IntroductionThe dosing of chemicals adopts an adjustable flow rate method, with a dosing delivery pressure of 80 psi or higher, including a liquid level protection control in the chemical storage tank.
Its primary purpose is to use sodium hypochlorite (NaOCl) to treat and control microbial growth, serving as a disinfectant for tap water and pool water, as well as a bleach.
It complies with the regulations of the United States Food and Drug Administration (FDA 21CFR 173.310) and can be used for equipment sterilization in food plants.Product Features
- Fire and acid resistant polypropylene enclosure
- 0 - 100% manual flow control valve
- Manual air vent, powered by 90 - 265V AC (24V available upon request)
- Quick-connect ports for power supply and liquid level detection
- Operational status LED indicator
- IP 65 protection rating
- Pump head customization available according to customer requirements
Usage Method
- Can be used with a metering pump for precise dosing, or calculated according to concentration, typically added once or twice per week
- Optimal dosing concentration: 200 ppm
- Chemical dosing outlet pressure: 5-7 bar
-
Process Flow
Installation steps
-
Specification SheetModelFlow ratePressureCubic centimeters per strokeStrokes per minuteConnection diameterPower consumptionWeightOL BP2 l/h7 bar0,331804/6 mm15 watt1,5 kg
Disinfection Dosing Unit
Includes a dosing machine and chemical storage tank (PE tank, 60-200L capacity)
